DeSite
SLG-68V
Hourly Production
10 to 20 yards per hour
WE HAVE INVENTORY READY TO SHIP
MSRP
$6,250 USD
$7,700 CAD
SCREENER FEATURES

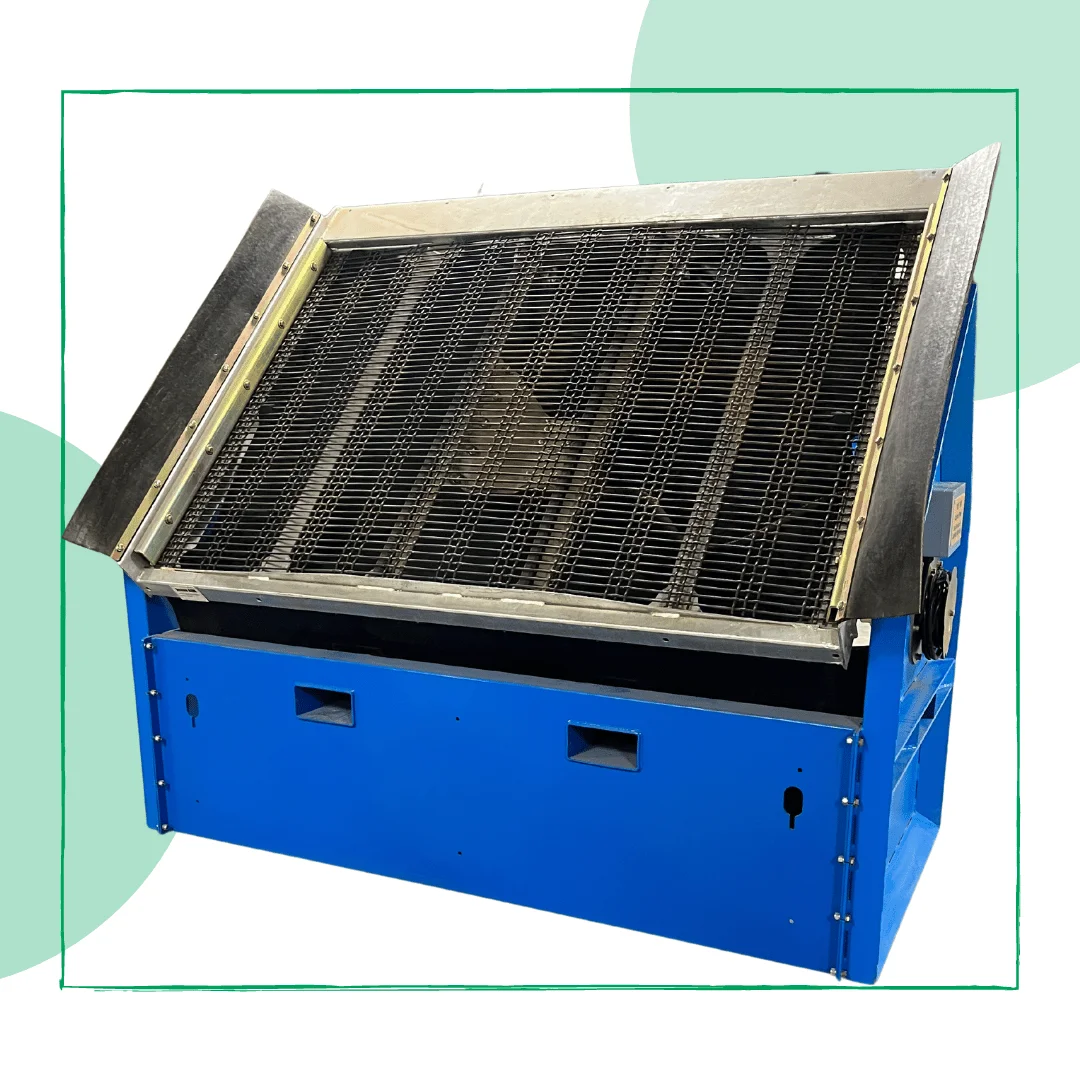

RUBBER SCREEN DECK SKIRTS
- We have installed rubber skirts on each side of the 68V screen deck.
- The skirts are there to catch stray material falling from the bucket that might miss the deck.
- We have made the skirts of rubber to bend and flex in case hit by the bucket.

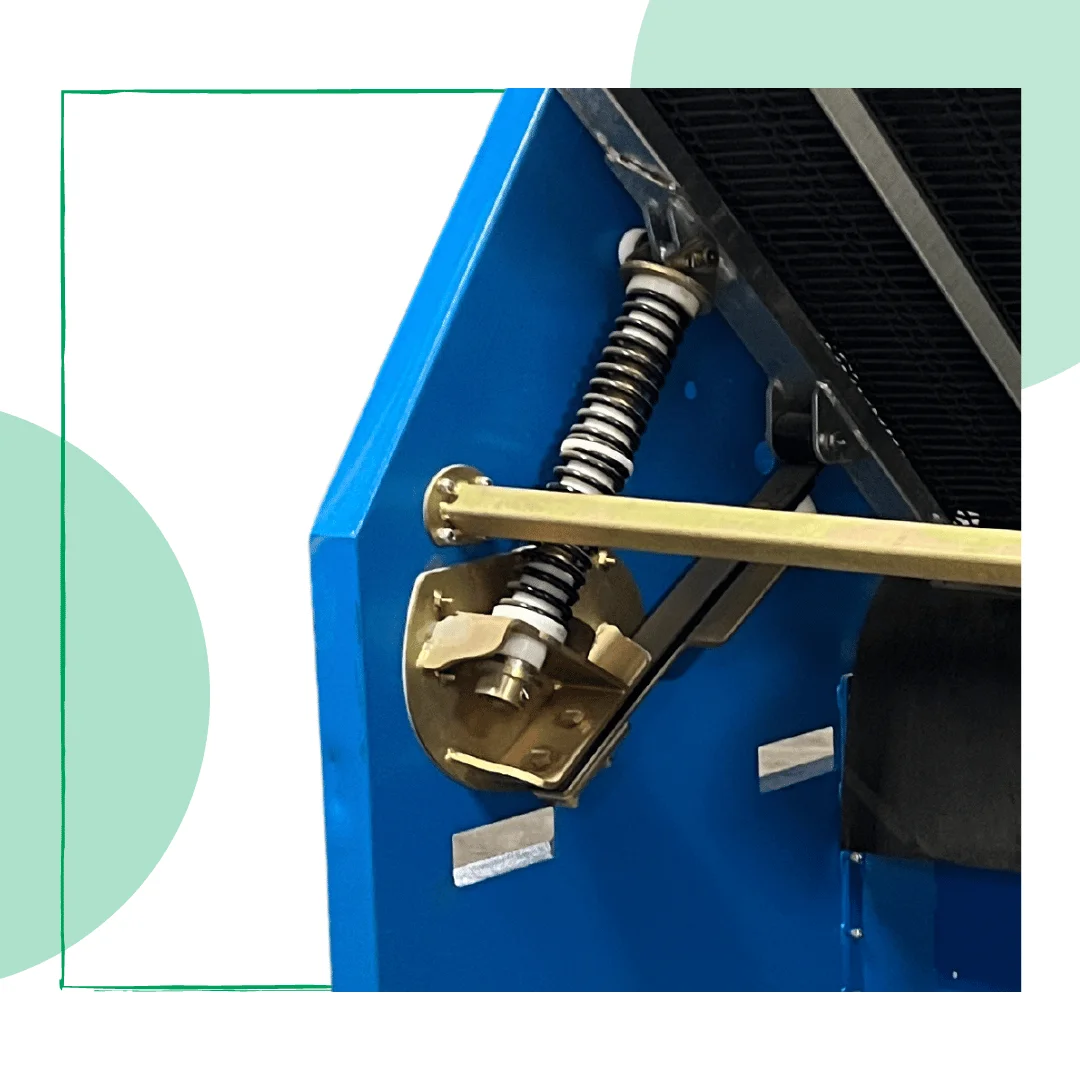

CANTILEVERED SPRING SUSPENSION SYSTEM
- The SLG 68V comes with the same durable coil and leaf spring system put into our SLG 78VF screening machine.
- The operator has the control over the slope of the screen deck.
- A steeper deck angle makes material travel faster for better screening of wet materials.
- A flatter deck slope slows material flow and works best with gravels, sand, and dry soils.

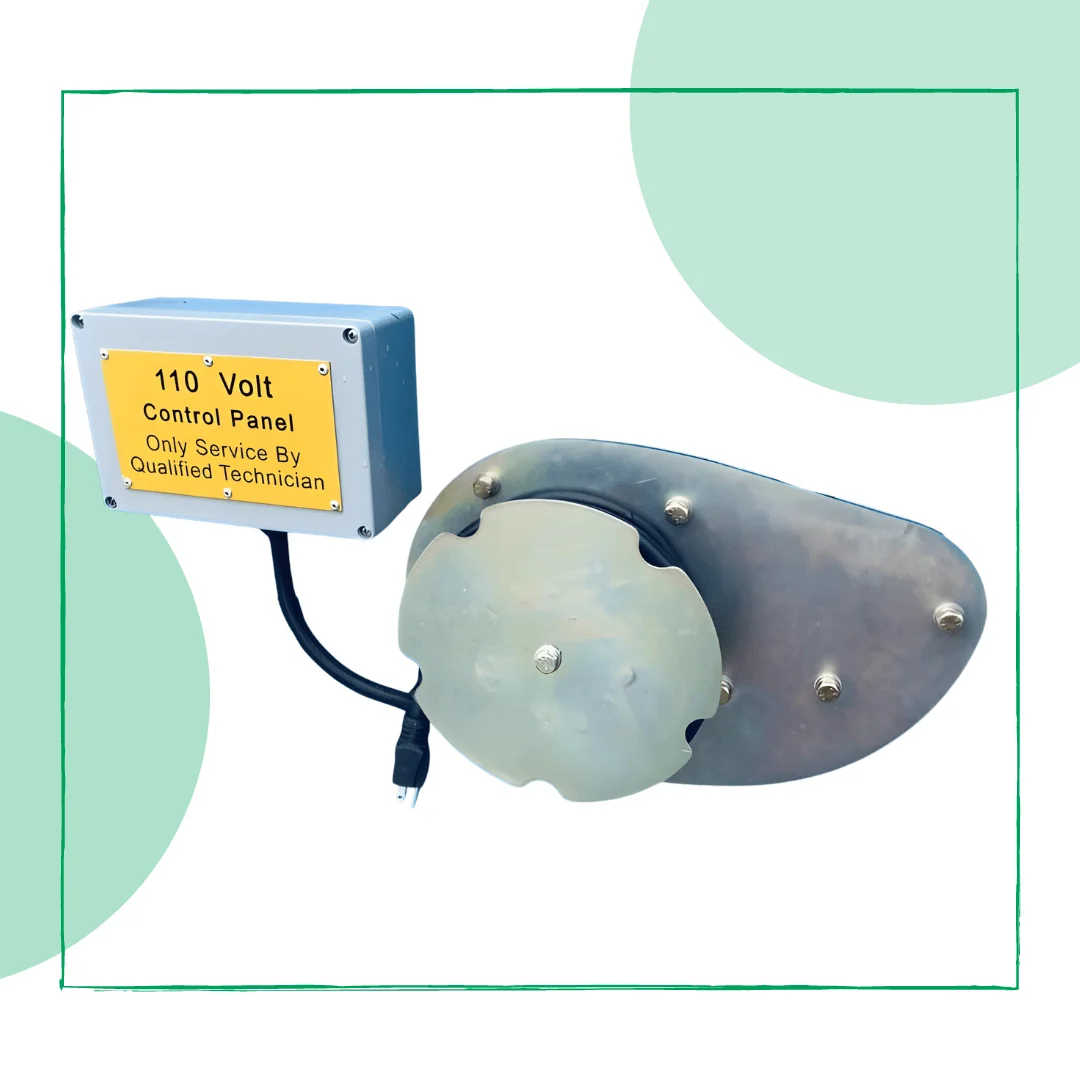

POWER BOX

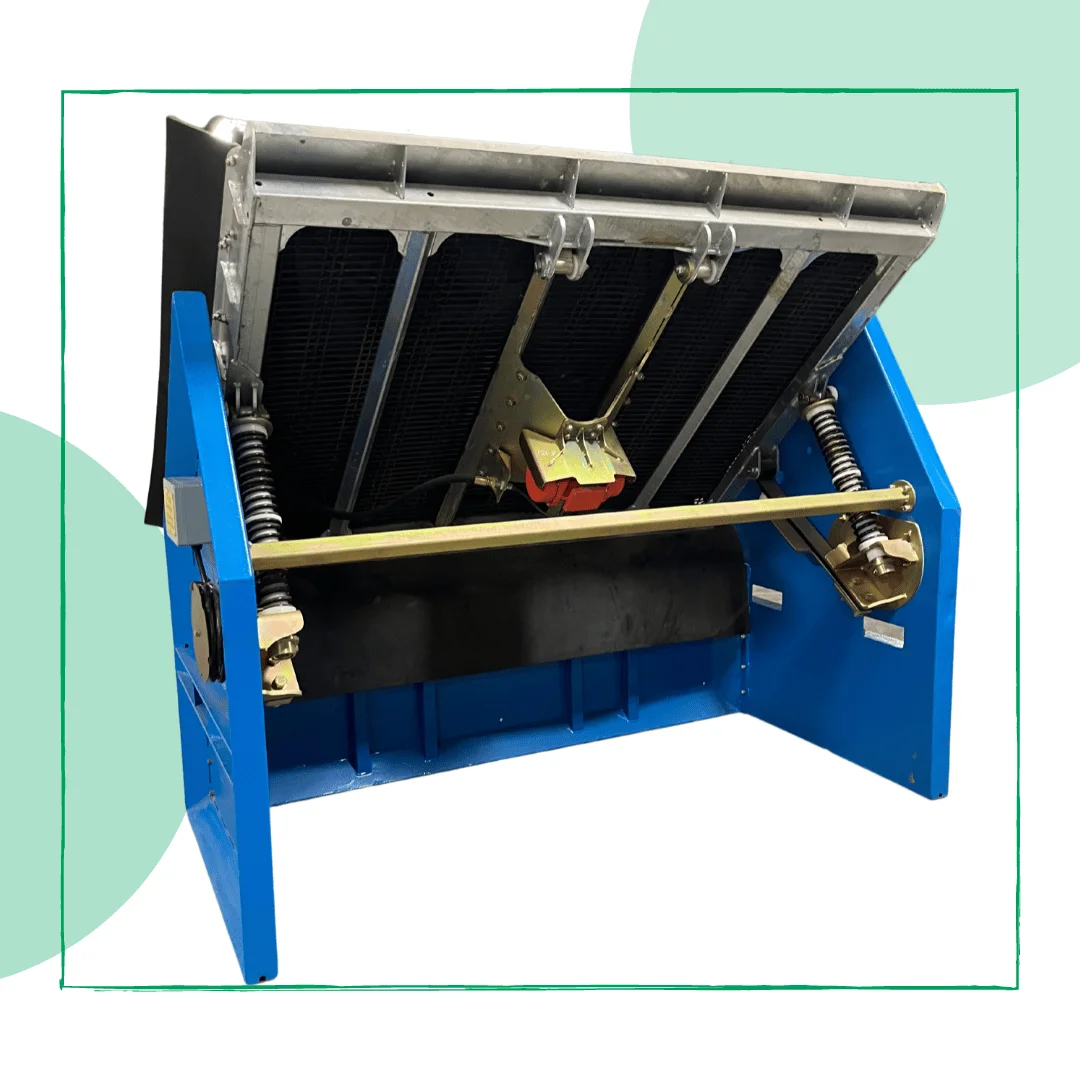

TILTING SCREEN DECK
VIBRATORY SYSTEM
- The SLG68V comes with our Dual Eccentric (110 volt) 3600rpm Vibratory Pack, the same vibratory power built into our bigger SLG 78VF.
- The motor and eccentric system is sealed away from the elements and maintenance free.
- The 68V vibratory pack draws 4 to 5 amps and works off a 15 amp circuit or can be powered with a compact 3500 watt portable generator.
WHAT YOU CAN SCREEN?
- Sand
- Topsoil
- Compost
- Wood Mulch
- Ground Asphalt
- Erosion Control Rock
- Pea Stone
- Septic Rock
- Road Gravel
- Landscape Stone
- Crushed Concrete
- Traction Sand
SLG-68V DESIGNED FOR
Mini Skidsteers
Sub Compact tractors
Mini excavators
SCREENER ACCESSORIES

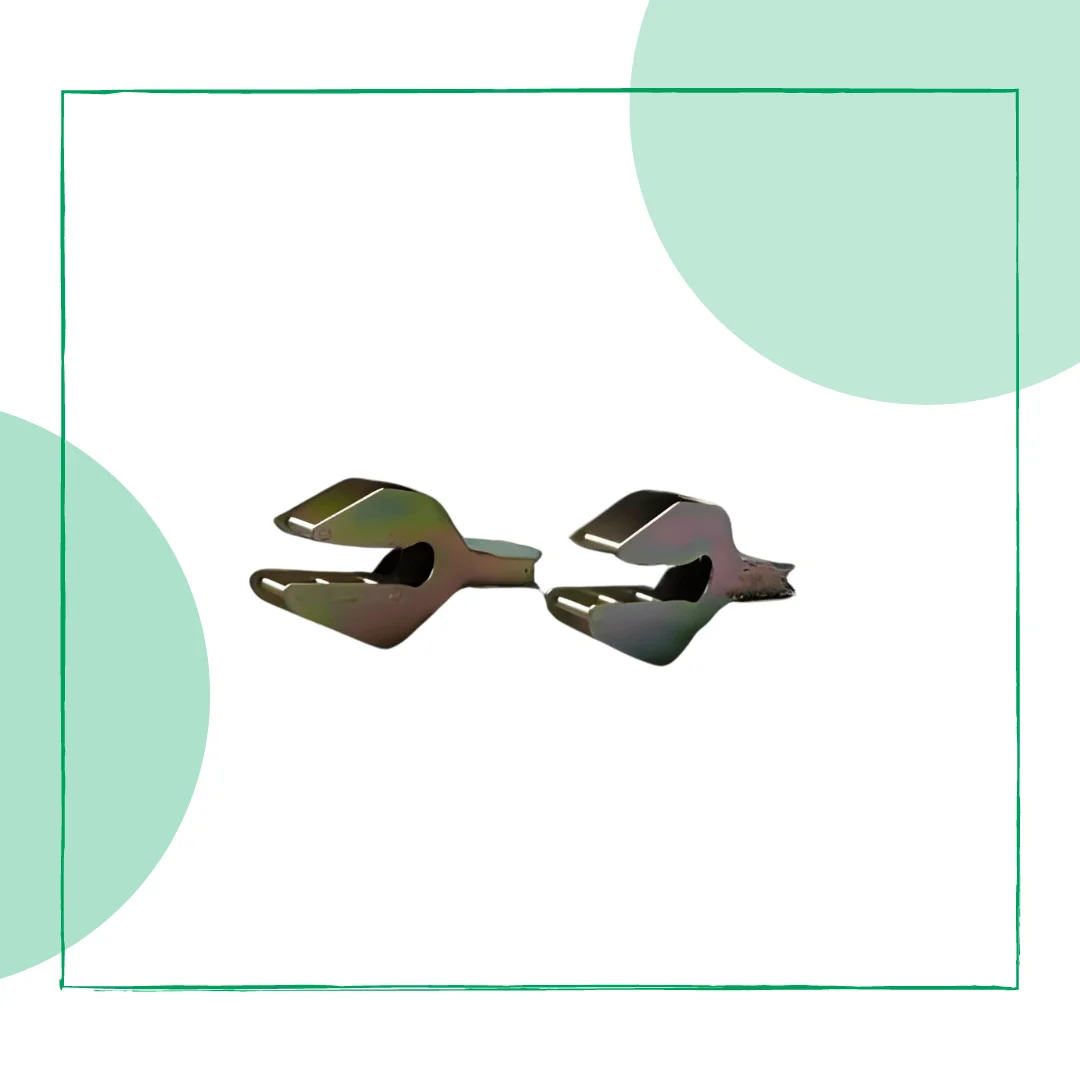

BUCKET TRANSPORT LUGS
- For moving the SLG 68V around onsite our Bucket Transport Lugs will save time and the need for having pallet forks onsite.
- The lugs slide directly into the fork pockets with a retention hole to lock them in place.
- Once installed you will have the ability to pick up the screener with your bucket and move the screener quickly.
- No hitch, no wheels, no wiring, and no digging.
MSRP
$275 USD
$371.25 CAD

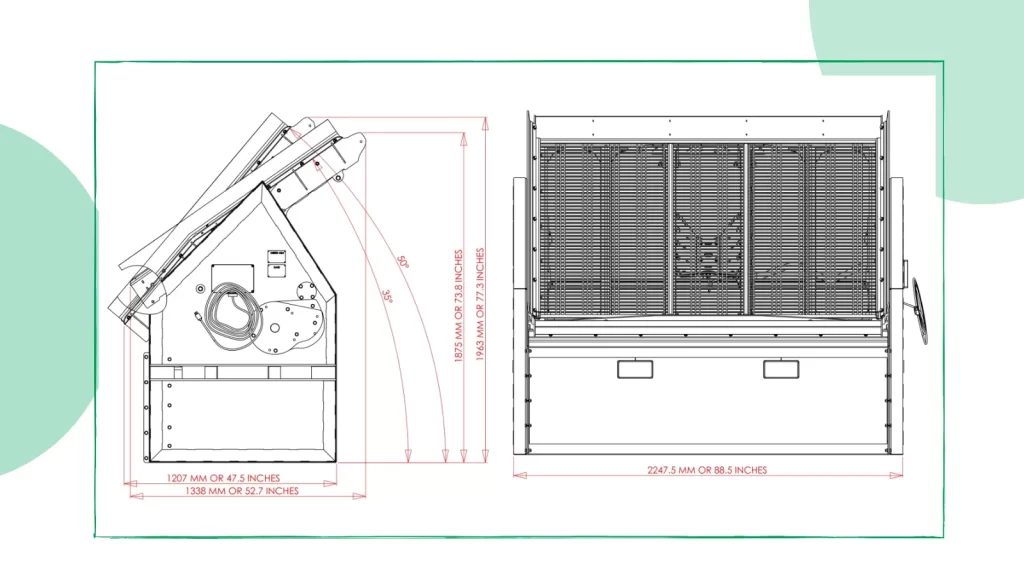

MACHINE SPECIFICATIONS
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 89 inches |
| Machine Height | 74 inches |
| Machine Depth | 48 inches |
| SCREEN DECK | |
| Screen Deck Width | 68 inches |
| Screen Deck Length | 52 inches |
| Screen Deck Surface area | 27 sq/ft |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| VIBRATORY SYSTEM | |
| Vibratory Style System | Dual Eccentric Armature |
| Eccentric Rotation Speed | 3600 rpm |
| Amperage Draw | 10 each on start up with 5 Amps Amp draw per motor at 3600rpm |
| Eccentric Force rotation | 760 lbs per/revolution |
| ELECTRICAL POWER SUPPLY | |
| North America | 110 Volt ( 60 Hertz ) |
| Europe | 220 Volt ( 50 Hertz ) |
| South America | 110 Volt ( 60 Hertz ) |
| WEIGHT | |
| Total Weight | 1500 lbs |
DESITE WARRANTY POLICY
Buy With Confidence
3 year structural warranty.
1 year electrical components warranty.
ABOUT MESH

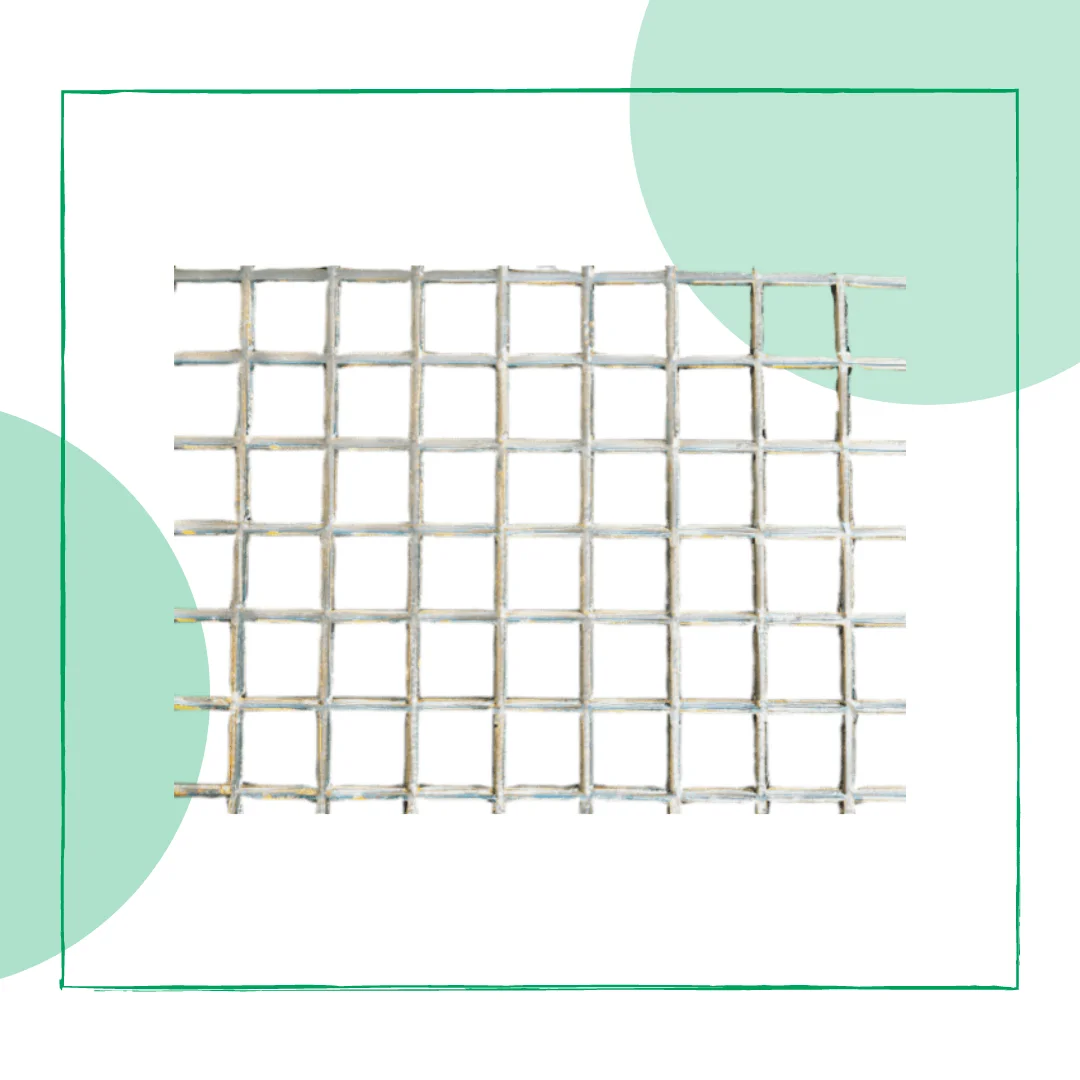

SQUARE
- We offer a wide range of mesh that are quick and easily changed.
- The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker.
- We offer both square and elongated mesh pattern in a double lock crimp weave.
- Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.

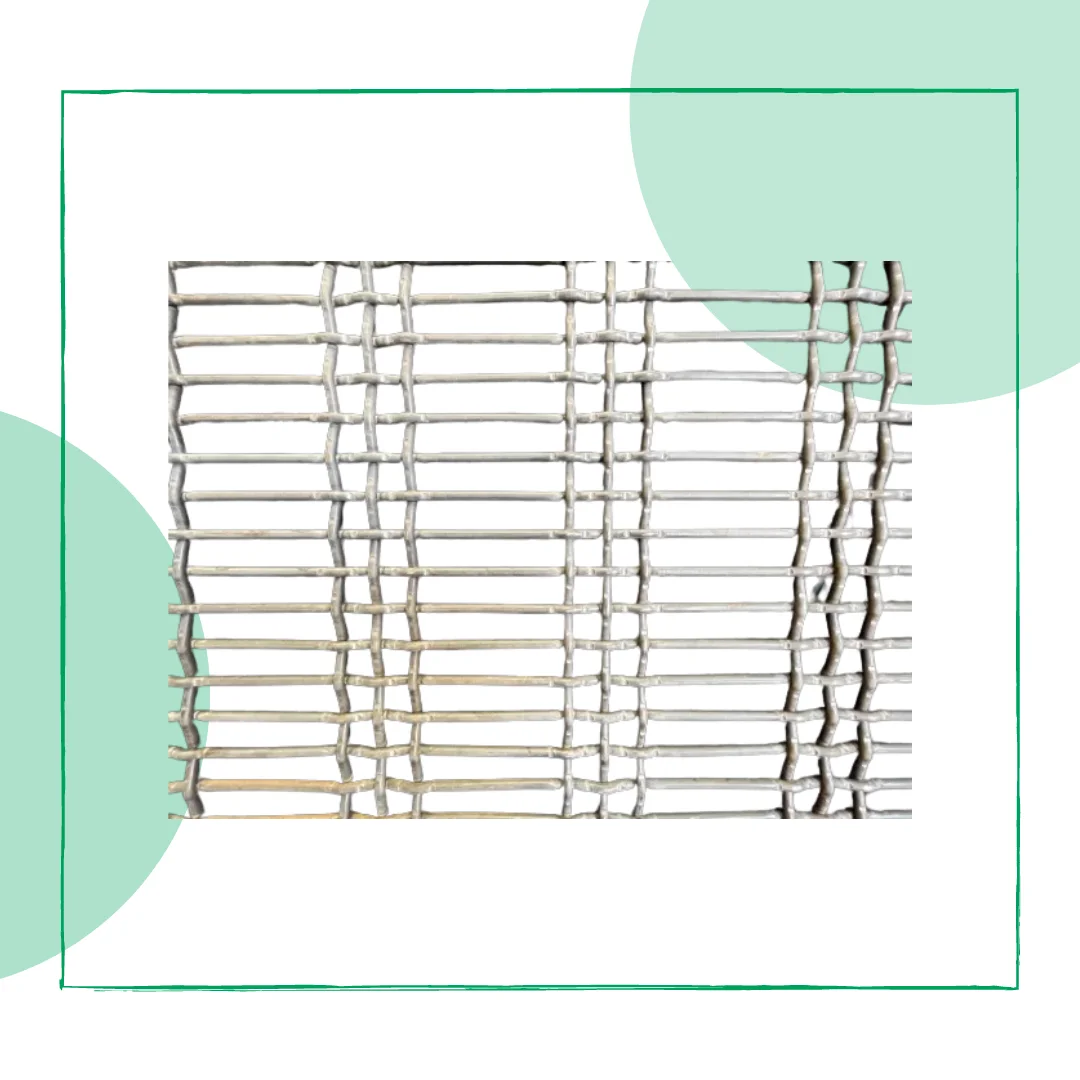

ELONGATED
- Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires.
- A space of four inches has full unobstructed opening before the next three wires intersect the mesh again.
- Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging.
- Hourly production are always considerably higher when elongated pattern mesh in in use.
Screen mesh Recommendation Chart
- Topsoil is in demand and profitable. Depending upon the customer and their needs some want it very fine while other are more price conscious and want commercial grade topsoil.
SQUARE
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 5/32" x 5/32" | Square | 1/16" |
| 1/4" x 1/4" | Square | 1/8" |
| 3/8" x 3/8" | Square | 1/4" |
| 1/2" x 1/2" | Square | 3/8" |
| 1" x 1" | Square | 3/4" |
| 2" x 2" | Square | 1-1/2" |
| 3" x 3" | Square | 2" |
| 4" x 4" | Square | 3" |
ELONGATED
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3/8" x 4" | Elongated | 1/4" to 5/16" |
| 1/2" x 4" | Elongated | 3/8" to 7/16" |
| 3/4" x 4" | Elongated | 1/2" to 9/16" |
| 1" x 4" | Elongated | 3/4" to 7/8" |
